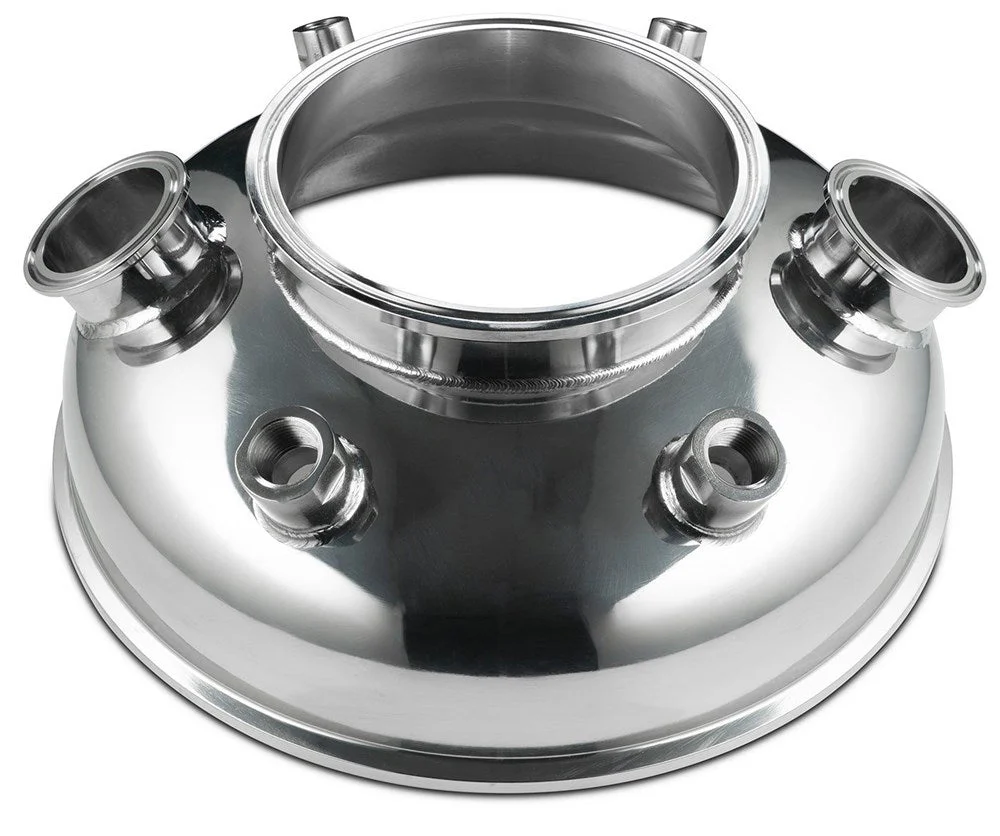

12" Hemispherical Extractor Lid with 6" Triclamp Center
12" Hemispherical Extractor Lid with 6" Triclamp Center
This End Cap comes with Four FNPT Threaded connections, two 2" Tri-Clamp ferrules welded to the end cap, and a 6" Tri-Clamp center port. They allow the user to adapt and connect threaded connections to the NPT ports and Tri-Clamp lid connections to the others. These 7 connections are welded on a 12" Hemispherical Tri-Clamp End Cap.
| Specifications | |
|---|---|
| Material: | 304 Stainless Steel |
| Connection Types: |
2" Tri-Clamp (2x) 6" Center Tri-Clamp Port |
| 12" Tri-Clamp | |
|
1/4" - 18 FNPT (x2) 1/2" - 14 FNPT (x2) |
|
| Standard: | 3A |
Original: $350.00
-70%$350.00
$105.00
Description
12" Hemispherical Extractor Lid with 6" Triclamp Center
This End Cap comes with Four FNPT Threaded connections, two 2" Tri-Clamp ferrules welded to the end cap, and a 6" Tri-Clamp center port. They allow the user to adapt and connect threaded connections to the NPT ports and Tri-Clamp lid connections to the others. These 7 connections are welded on a 12" Hemispherical Tri-Clamp End Cap.
| Specifications | |
|---|---|
| Material: | 304 Stainless Steel |
| Connection Types: |
2" Tri-Clamp (2x) 6" Center Tri-Clamp Port |
| 12" Tri-Clamp | |
|
1/4" - 18 FNPT (x2) 1/2" - 14 FNPT (x2) |
|
| Standard: | 3A |
