AC Infinity Advance Grow Tent System Pro 5x5, 6-Plant Kit, WiFi-Integrated Controls, Full Spectrum LM301H EVO LED Grow Light
AC Infinity Advance Grow Tent System Pro 5x5, 6-Plant Kit, WiFi-Integrated Controls, Full Spectrum LM301H EVO LED Grow Light
Description
An advanced grow tent kit with smart controls and integrated components to start an indoor growing system.
The controller automates each fan and light with individual programs to dynamically adjust speed and brightness.
Connect your mobile device to our app via WiFi to automate and track your grow tent climate from anywhere.

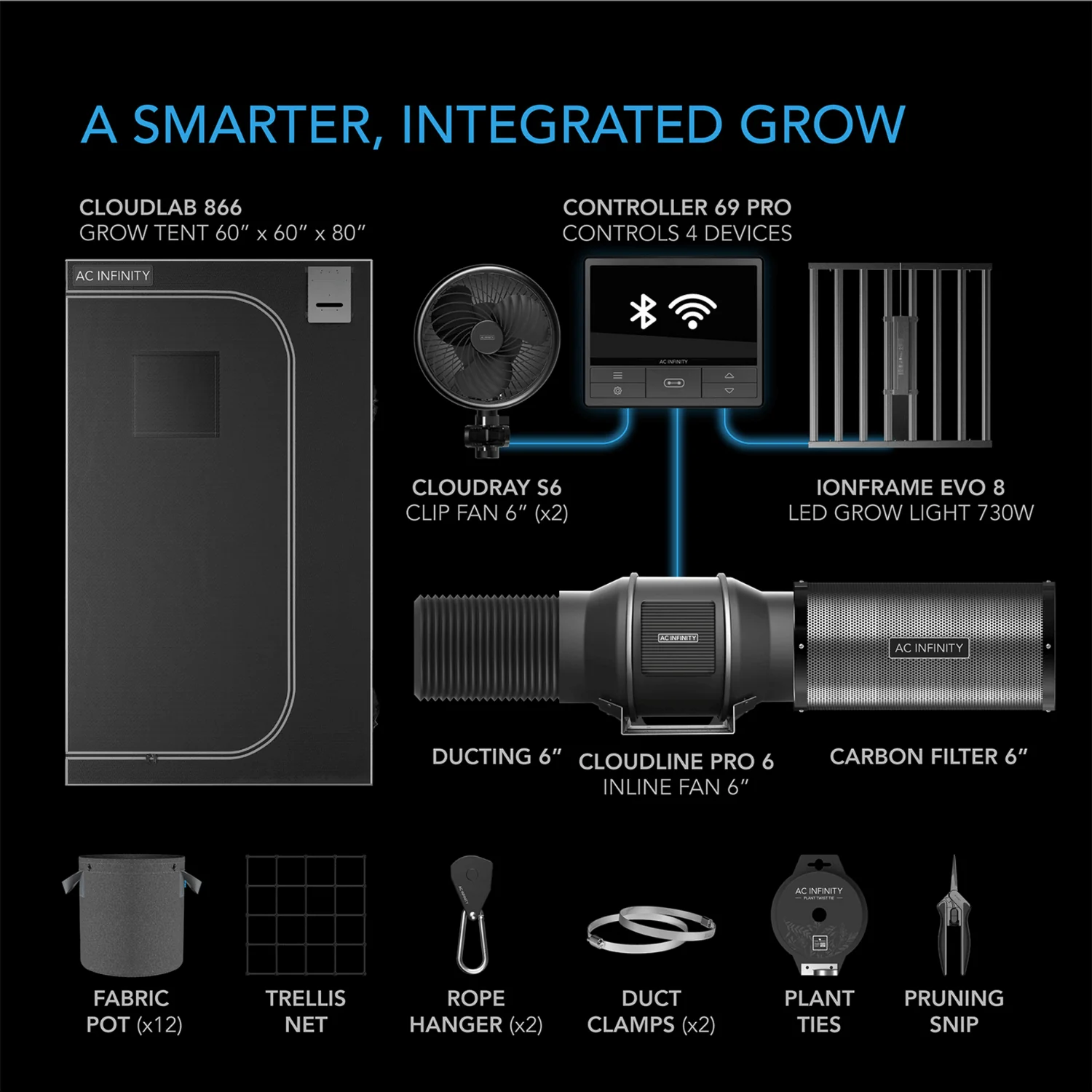

EC inline fan 6”, oscillating clip fan 6”, and 730W full-spectrum bar grow light with Samsung LM301H EVO LEDs.
Premium 2000D Mylar tent measuring 60”x60”x80”, Australian carbon filter, ducting, fabric pots, pruning snips, and more.
Product Description: An advanced grow tent system with intelligent controls to manage your grow environment and ensure ideal growing conditions for a successful harvest. The inline fan, carbon filter, and ducting manage your tent’s climate conditions by routing heat, humidity, and odor away from it. Air is circulated inside with the oscillating clip-on fan to provide light breezes to your plants. Algorithmically arranged LM301H EVO diodes on the grow light frame emit powerful LED lighting over wide coverage to simulate natural sunlight and optimize growth. These Samsung LEDs are the best in their class, delivering higher light intensity and greater efficiency per diode than LM301H, LM301B, Bridgelux 3030, and other popular LEDs. The devices are housed in a high-density Oxford grow tent, featuring a sturdy steel frame and Mylar walls to create a climate-controlled grow space.
Intelligent Programming: Integrating these components is the CONTROLLER 69 PRO, engineered to provide each device with shared or independent programming. This central control unit can set dynamic programs to activate your grow devices in response to VPD (vapor pressure deficit) levels, in addition to temperature and humidity, to help you further dial into your ideal growing space. Timer, cycle, and schedule modes add custom on-demand activation for a variety of indoor growing uses. Securely connect to the AC Infinity app via WiFi to remotely access your indoor grow system from anywhere outside the boundaries of your home, unlocking advanced programs, alerts, notifications, and historical charts.
Specifications
Product Identification
Manufacturer: AC Infinity Inc.
Product Name: Advance Grow System B55
Product Model: AC-PKB55
UPC Code: 819137024038
Product and Mounting Dimensions - Grow Tent
Tent Dimensions: 60" x 60" x 80" (152.4 x 152.4 x 203.2 cm)
Duct Opening Sizes: 4", 8"
Viewing Window Size: 11.81" x 11.81" (30 x 30 cm)
Rear Intake Hole Size: 5.90" x 13.77" (15 x 35 cm)
Side Intake Hole Size: 5.90" x 13.77" (15.0 x 35 cm)
Mounting Strap Length: 6.49" (16.5 cm)
Product Performance and Technical Specs - Grow Tent
Outer Tent Material: Oxford
Inner Tent Material: Mylar
Pole Material: Steel
Pole Thickness: 22 mm
Beam Weight Capacity: 150 lbs
Plant Capacity: 6
Product and Mounting Dimensions - Inline Fan
Duct Size: 6"
Total Dimensions: 7.87" x 12.60" x 8.35" (21.2 x 32 x 20 cm)
Mounting Hole-To-Hole Distance: 3.15" x 2.36" (8 x 6 cm)
Screw Hole Size: Ø 0.236" (Ø 0.6 cm)
Cord Length to Controller: 240" (20')
Cord Length to Plug: 96" (8')
Performance and Technical Specs - Inline Fan
Total Airflow: 402 CFM
Total Noise: 32 dBA
Static Pressure: 503 Pa
Voltage: 100-240V AC
Frequency: 50/60Hz
Max Power Draw: 64 W
Average Power Usage: 38 W
Current: 1.67 A
Power Connector Type: US Plug (NEMA 1-15 Type-A)
Operating Humidity: 35 to 85% RH
Operating Temperature: 32 to 140 ºF
Ingress Protection: IP 44
Fan Bearings: Dual Ball
Mounting Positions: Horizontal or Vertical
L10 Life Expectancy: 67,000 Hours
Fan Quality Approvals: CE, RoHS
Product and Mounting Dimensions - Clip Fan
Impeller Size: 6.5"
Total Dimensions: 8.74" x 10.47" (22.2 x 26.6 cm)
Cord Length to Plug: 96" (8')
Product Performance and Technical Specs - Clip Fan
Maximum Airflow: 315 CFM
Total Noise: 33 dBA
Static Pressure: 25 Pa
Operating Voltage: 100-240V AC
Power: 8 W
Current: 0.14 A
Operating Humidity: 35 to 85% RH
Operating Temperature: 32 to 140 ºF
Waterproof Rating: IP-44
Rotation Range: 90 Degrees
Tilt Angle: 55 Degrees
Oscillation: Automatic Oscillation
Fan Bearings: Dual Ball Bearing
Mounting Positions: Horizontal or Vertical
Life Expectancy: 67,000 Hours
Product and Mounting Dimensions - Controller
Total Dimensions: 5.19" x 2.91" x 1.06" (13.2 x 7.4 x 2.7 cm)
Hole to Hole Distance: 4.71" x 2.64" (12.0 x 6.7 cm)
Screw Hole Size: Ø 0.119" (Ø 0.3 cm)
Display Size: 3.5" x 1.4" (9 x 3.5 cm)
Sensor Probe Length: 144" (12')
Product Performance and Technical Specs - Controller
Maximum Devices Controlled: 4
Max Power Supported: 10 W
Programming Temperatures: 32 to 140 ºF
Operating Voltage: 9 to 18V
Power: 1 W
Current: 0.1 A
Power Input: 12V from Device
Operating Humidity: 35 to 85% RH
Product and Mounting Dimensions - LED Grow Light
Light Dimensions: 44.09" x 44.48" x 3.38" (112 x 113 x 8.6 cm)
Product Performance and Technical Specs - LED Grow Light
Coverage: 5' x 5'
Diodes: Samsung LM301H EVO
Spectrum: 395nm, 660nm, 3000K, 5000K
Chip Count (Total): 2688
Chip Count (EVO 3000K): 1720
Chip Count (EVO 5000K): 864
Chip Count (Seoul 395 nm): 8
Chip Count (OSRAM 660 nm): 96
LED Driver: SOSEN-320W
Efficiency (Single Diode): 3.14 umol/J
PPFD: 1408 PPFD
Wattage: 730 W
Voltage: 100-277V AC
Frequency: 50/60 Hz
Controller: Schedule Controller
Power Connector Type: US Plug (NEMA 1-15 Type-A)
Operating Humidity: 35 to 85% RH
Operating Temperature: 32 to 140 ºF
Waterproof Rating: IP-65
Life Expectancy: 50,000 Hours
Product and Mounting Dimensions - Carbon Filter
Duct Opening Size: 6"
Total Dimensions: 15.94" x 8.93" (40.5 x 22.7 cm)
Flange Length: 1.57" (4 cm)
Product Performance and Technical Specs - Carbon Filter
IONFRAME EVO8 – Commercial Bar LED Grow Light 730W (x1)
CLOUDRAY S6 – Oscillating Circulation Clip Fan (x2)
Carbon Filter 6” (x1)
6” Flexible Ducting, 8’ Long (x1)
Hanging Straps (x2)
Rope Clip Hangers (x2)
6” Steel Clamps (x2)
5’ Duct Tape (x1)
Hook and Loop Ties (x10)
6’ UIS Male to Male Controller Cord (x1)
6’ L-Shaped UIS Male to Male Controller Cord (x2)
5-gallon Fabric Pots (x12)
Elastic Trellis Netting 5x5’ (x1)
Black Wire Twist Ties (x1)
Micro-tip Pruning Shears (x1)
Media
$577.80
Original: $1,925.99
-70%
AC Infinity Advance Grow Tent System Pro 5x5, 6-Plant Kit, WiFi-Integrated Controls, Full Spectrum LM301H EVO LED Grow Light—
$1,925.99
$577.80
